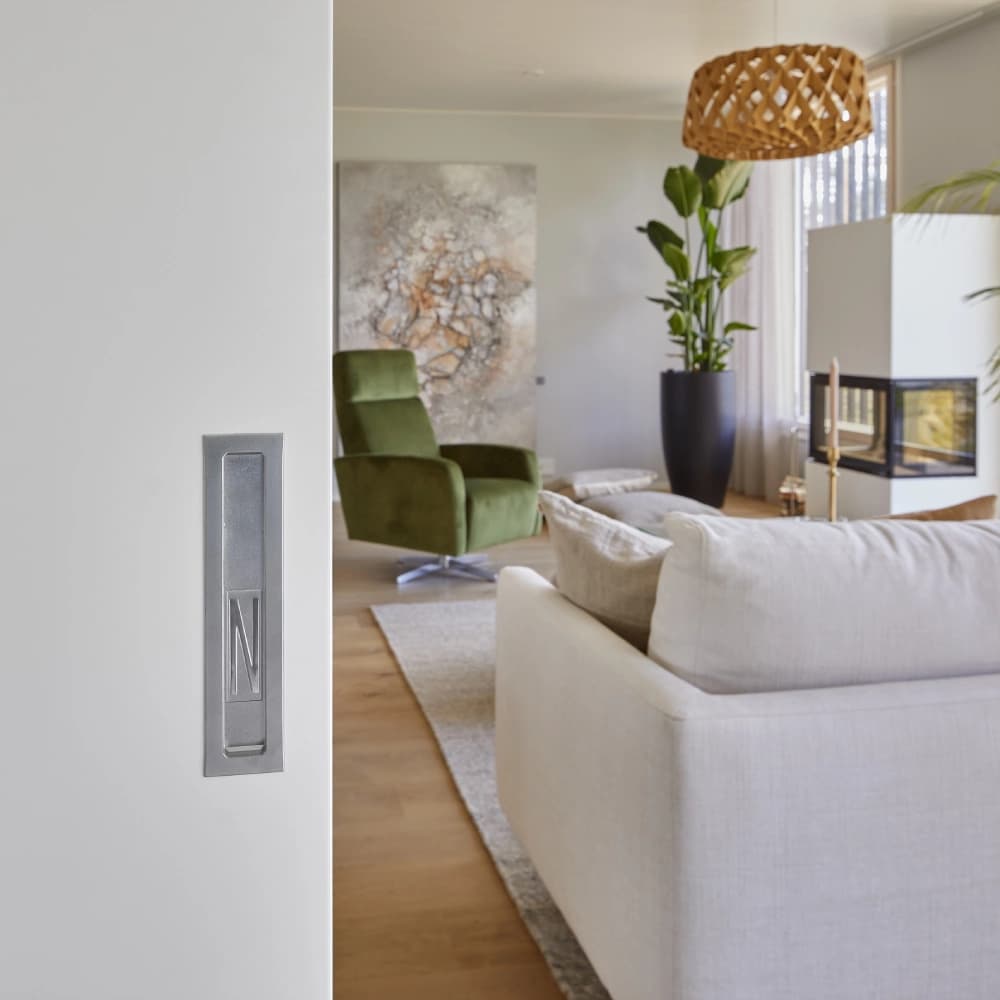

Product image

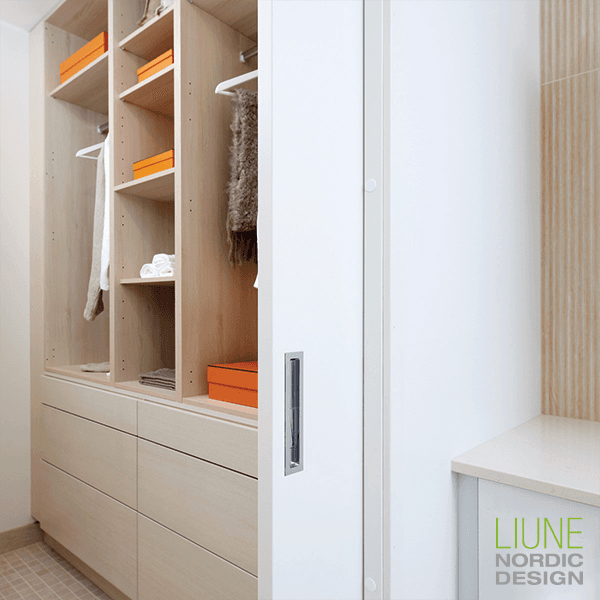

Hope | D1 Thick Massive door

40mm thick door, made of ultralight mdf-material.

0,00

Loading...
Loading...

Total Price:

0,00

Hope | D1 Thick Massive door
Hope | D1 Thick Massive door
Hope | D1 Thick Massive door
Hope | D1 Thick Massive door

Intended use

For newer and renovation projects. Multiple uses in homes; living room, kitchen, bedroom, wardrobe, kitchenette, utility room, nursery, hallway also corridors, and finally your home office.

Structure

The door is made of massive MDF material; a semi-hard fiberboard with unique physical properties. Only the wood from thinning is used for production, which conserves raw materials. The wood of Liune HOPE door is mainly pine and spruce. The door leaf thickness is 40 mm.

The element is structural steel and the structure is welded at the factory. The element is made out of CE marked steel profiles.

Door width

610-1010 mm single-leaf doors and double doors width 1434-2034.

Door height

Doors are 2100 mm high. Available up to 2600 mm, when you choose the product DESIGN (D16).

Depth of the wall

The wall depth is 121 mm when the frame is 95 mm and 146 mm when the frame is 120 mm.

Sound insulation

LIUNE HOPE door has a score of Rw 28 dB, tests by Helimäki Akustikot Oy. More about Liune door sound insulation here.

Electricity

The body of the element has places for electricity at all frame depths as standard. Electrical sockets can always be placed next to the door in the element. As the door is 40mm thick, in 95mm frame only surface sockets are possible. In a 120mm frame, the embedded shallow sockets are possible.

Element electrical sockets

The surface of the door

The standard color for the door is painted white (NCS S 0502-Y). Other colors are available on request.

Fitting

Handles can be selected according to the object. The rollers or bearing rollers are hung on the slide rail of the element and the brackets are attached to the door at the factory as well as your chosen handle.

Frame

The doors have white (NCS S 0502-Y) frame strips as standard, other colors available on request. The standard frame depth is 121 mm in a 95 mm frame. Liune frames also come with frame plugs.

Threshold

There is no threshold in Liune and the passage is unobstructed.

Sealing

The door is delivered with a white soft-sealing strip to soften the sound of the door when closing. Liune doors have good sound insulation.

Equipment

The suspension mechanisms are already attached to the element and the door. Only installation is done on-site, as the products are already assembled at the factory. The door locks complete with a handle recessed inside the wall. The external pull takes about 100 mm from the free passage. The delivery also includes screws for plasterboard and frames, roller shutters, white frame plugs, and a door adjustment key.

We recommend a soft closer to the door. The soft closer brings considerably more comfort and safety as it softens the closing of the door. The soft closer is only for the other side because the Liune door slides completely into the door pocket and locks with the mechanism and opens manually when the mechanism is pressed from the end of the door. If you want the door to stay closed tighter, we suggest a door locking mechanism.

If you want the double door to open at the same time, add a double door synchronization to your order.

Warranty

We grant (10) a ten-year warranty on the Liune Door prefabricated frame. This requires that the product installation and instructions have been followed and the products were for home use.


Delivery package

  • Sliding door element ready for installation, with fixed aluminum and lower rails as well as space for the selected door leaf. The possibility of an electric conduit is noticed in the element.
  • Sliding door. The hanging mechanisms have been attached already. Many models are fitted with a lockable latch and tab. All fastenings have been pre-installed except the lock which is to be installed at the construction place.
  • Frames, measured always on one plasterboard panel per installation side.
  • Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
  • Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.

The delivery does not include any plasterboards or cover trims.

Measurements

measurements LD1

Brochures

Liune Door PDF

Liune Door Product Guide PDF

Installation guide

Liune Door and Frames installation PDF

Liune QuickFrame installation PDF

Installation video

Liune EPD- environment document

Liune EPD

Have a great modeling experience with Liune

The GDL object library is a comprehensive and easy to use. A tool for designers and projects in the ArchiCAD environment. Using the web material of product information requires AcrobatReader.

Opening and processing CAD images requires  a separate CAD program.  If you use the ArchiCAD program, you can download the Liune Door object.


LIUNE CAD -drawings DWG

Autodesk AutoCAD.

Liune dynamic blocks library 2022.dwg (13.5MB)

User's guide Liune AutoCAD dynamic blocks.pdf




LIUNE DOOR PDF -library

LIUNE DOOR high door element 66mm and 95mm
LIUNE DOOR sauna frame 95mm 120mm 565 KB
LIUNE DOOR one leaf and double door frame 120mm 592 KB
LIUNE DOOR one leaf and double door frame 66mm 1 MB

LIUNE DOOR one leaf and double door frame 95mm 2 MB
Liune renovation elements 3 MB

Liune renovation elements without opposite frame 3 MB


Liune ArchiCAD-object 1/2023

LIUNE GDL library 2023.lcf

User guide for GDL Liune library.pdf


LIUNE VXZ -files (Vertex)

Liune elements 66mm 4 MB

Liune elements 95mm 4 MB

Files are provided as it is and company holds no responsibility for the possible errors in programming, files or measurements direct or indirect. Validy of the information should be always checked.


LIUNE Revit RFA -files, Autodesk Revit ver. 2016

Liune D1 massive door 2 MBLiune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 2 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 916 KB
Liune D16 design door 2 MB


Revit user guide

Liune REVIT USER GUIDE 2 MB


Door textures for Revit

Preview:

Texture: Birchupload/kuvat/Nut_200.jpgupload/kuvat/OakVeneer_200.jpgupload/kuvat/Pine_200.jpgupload/kuvat/PrintGlass_200.jpgupload/kuvat/PrintGlassMirrored_200.jpgupload/kuvat/SaunaWood_200.jpg

Load and save the textures from link below. You will need the pictures in Revit to replace the white door texture.
Liune door textures 2,59 MB


Liune Door BIM object for Autodesk Revit rfa 2012

Liune D1 massive door 2 MB
Liune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 3 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 824 KB
Liune D16 design door 2 MB

10 Year Warranty for element

Hope is an massive door of 40 mm thickness, the standard color shade is white. However, door color can be chosen freely according to the interior designers' plan.

In order to obtain a modern and functional space, naturally, doors should not be on the way – that’s why they slide inside the wall structure.

Maximum doorway width in this model 1010 mm. More width: look door model Magic (LD3). More height: look door model Design (LD16).

Liune Hope LD1 technical picture

Delivery package

  • Sliding door element ready for installation, with fixed aluminum and lower rails as well as space for the selected door leaf. The possibility for the electric conduit is noticed in the element.
  • Sliding door. The hanging mechanisms have been attached already. Many models are fitted with a lockable latch and tab. All fastenings have been pre-installed except the lock which is to be installed at the construction place.
  • Frames, measured always on one plasterboard panel per installation side.
  • Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
  • Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.

The delivery does not include any plasterboards or cover trims.
