Time | D9 Dark grey glass
Dark grey glass door. The material is 8mm thick tempered safety glass
0,00 €
Total Price:
0,00 €
Intended use
For newer and renovation projects. Multiple uses in homes; living room, kitchen, bedroom, wardrobe, kitchenette, utility room, nursery, hallway also corridors and finally your home office.
Structure
8 mm thick tempered safety glass, in accordance with RakMK F2 2001 regulations.
The element is structural steel and the structure is welded at the factory. The element is made out of CE marked steel profiles.
Door width
710-1210 mm for Single leaf doors and double door width is 1234-2234 mm.
Door height
TIME doors are 2100 mm high.
Depth of the wall
The wall depth is 96 mm when the frame is 70 mm, is 121 mm when the frame is 95 mm and the depth is 146 mm when the frame is 120 mm.
Sound insulation
Liune TIME door has a score of Rw 17 dB, tests by Helimäki Akustikot Oy. More about Liune door sound insulation here.
Electricity
The body of the element has standard places for electricity at all frame depths. Electrical sockets can always be placed next to the door in the element.
Door surface
This Time-door has a dark grey glass. Other color choices for the glass door are opal and clear glass with black grille.
Fitting
Handles can be selected according to the object. The door is delivered ready for installation, ie the handle is pre-attached.
Frame
The doors have white (NCS S 0502-Y) frame strips as standard, other colors available on request. Standard frame depth 121 mm in a 95 mm frame.
Threshold
There is no threshold in Liune, ie the passage is unobstructed.
Sealing
The door is delivered with a white soft sealing strip to soften the sound of the door when closing. Liune doors have good sound insulation.
Equipment
The suspension mechanisms are already attached to the element and the door. Only installation is done on site, as the products are already assembled at the factory. The door locks completely with a handle recessed inside the wall. The external pull takes about 100 mm from the free passage. The delivery also includes screws for plasterboard and frames, roller shutters, white frame plugs and a door adjustment key.
We recommend a soft closer for the door. The soft closer brings considerably more comfort and safety as it softens the closing of the door. The soft closer is only for the other side because the Liune door slides completely into the door pocket and locks with the mechanism and opens manually when the mechanism is pressed from the end of the door. If you want the door to stay closed tighter, we suggest a door locking mechanism.
If you want the double door to open at the same time, add a double door synchronization to your order.
Warranty
We grant (10) a ten-year warranty on the Liune Door prefabricated frame. This requires that the product installation and instructions have been followed and the products were for home use.
Handle the glass door carefully.
The glass door is tempered safety glass that, when installed inside the element keep an eye out from large loads and shocks parallel to the level of the glass. When installing a glass door, make sure that the edge of the glass does not touch a hard floor or wall surface. Glass must never be handled with impatience or carelessness. The edges are the most vulnurable points.
If the glass or the edge of the glass is hit sharply, it will break into small crumbs. If the edge of the glass is cracked the glass must not be used, as the risk of glass breakage is bound to happen during and after installation. According to the rules of the Finnish Flat Glass Association, the glass manufacturer or further processor is not responsible for glass breakages that occur during or after the glass is installed.
Storage of the glass in the transport rack until installation.
Delivery package
- Sliding door element ready for installation, with fixed aluminium and lower rails as well as space for the selected door leaf. The possibility for electric conduit is noticed in the element.
- Sliding door. The hanging mechanisms have been attached already. Many models are fitted with a lockable latch and tab. All fastenings have been pre-installed except the lock which is to be installed at construction place.
- Frames, measured always on one plasterboard panel per installation side.
- Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
- Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.
The delivery does not include any plasterboards or cover trims.
Measurements
Have a great modeling experience with Liune
The GDL object library is a comprehensive and easy to use. A tool for designers and projects in the ArchiCAD environment. Using the web material of product information requires AcrobatReader.
Opening and processing CAD images requires a separate CAD program. If you use the ArchiCAD program, you can download the Liune Door object.
LIUNE CAD -drawings DWG
Autodesk AutoCAD.
Liune dynamic blocks library 2022.dwg (13.5MB)
User's guide Liune AutoCAD dynamic blocks.pdf
LIUNE DOOR PDF -library
LIUNE DOOR high door element 66mm and 95mm
LIUNE DOOR sauna frame 95mm 120mm 565 KB
LIUNE DOOR one leaf and double door frame 120mm 592 KB
LIUNE DOOR one leaf and double door frame 66mm 1 MB
LIUNE DOOR one leaf and double door frame 95mm 2 MB
Liune renovation elements 3 MB
Liune renovation elements without opposite frame 3 MB
Liune ArchiCAD-object 1/2023
User guide for GDL Liune library.pdf
LIUNE VXZ -files (Vertex)
Files are provided as it is and company holds no responsibility for the possible errors in programming, files or measurements direct or indirect. Validy of the information should be always checked.
LIUNE Revit RFA -files, Autodesk Revit ver. 2016
Liune D1 massive door 2 MBLiune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 2 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 916 KB
Liune D16 design door 2 MB
Revit user guide
Door textures for Revit
Preview:
Load and save the textures from link below. You will need the pictures in Revit to replace the white door texture.
Liune door textures 2,59 MB
Liune Door BIM object for Autodesk Revit rfa 2012
Liune D1 massive door 2 MB
Liune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 3 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 824 KB
Liune D16 design door 2 MB
10 Year Warranty for element

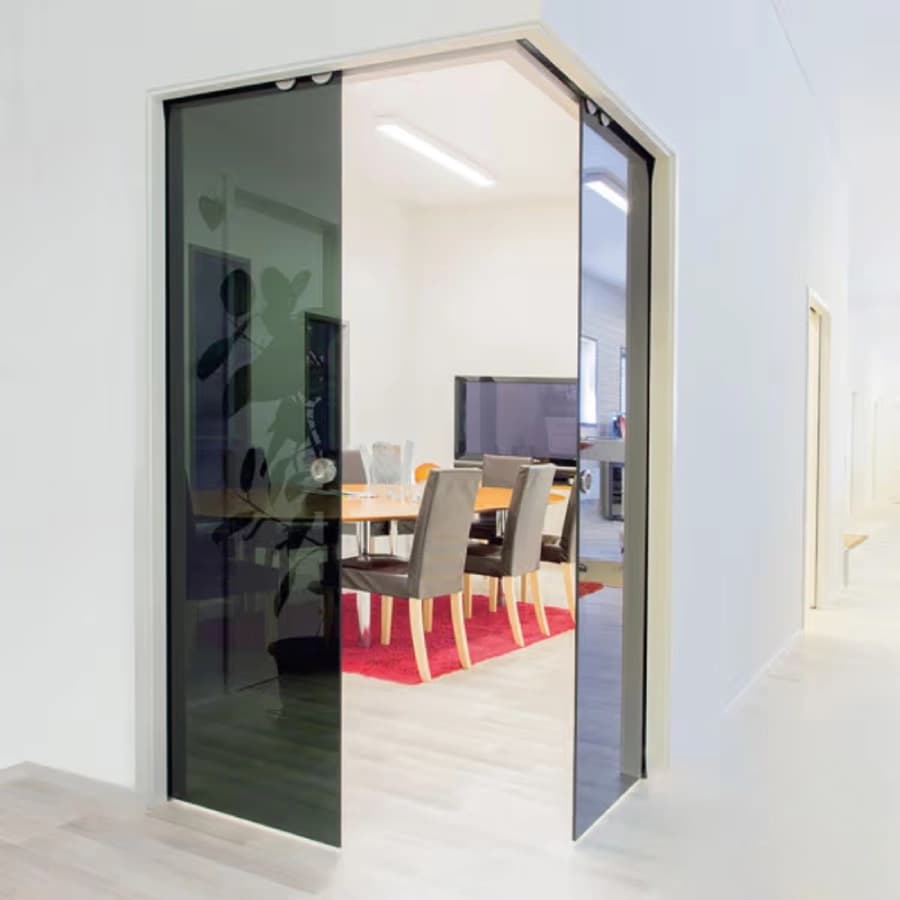

This Time-door has a dark grey glass. Integrated sliding partition doors bring serenity to your home. Thanks to the embedded handle the glass doors are locked completely inside the wall structure. We recommend the use of a damper for door closing which softens the motion of the door. It is possible to order a tempered laminated safety glass for day nurseries or day-care centers. The standard Liune Door comes as a tempered safety glass.
Delivery package
- Sliding door element ready for installation, with fixed aluminum and lower rails as well as space for the selected door leaf. The possibility for the electric conduit is noticed in the element.
- Sliding door. The hanging mechanisms have been attached already. Many models are fitted with a lockable latch and tab. All fastenings have been pre-installed except the lock which is to be installed at the construction place.
- Frames, measured always on one plasterboard panel per installation side.
- Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
- Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.
The delivery does not include any plasterboards or cover trims.
